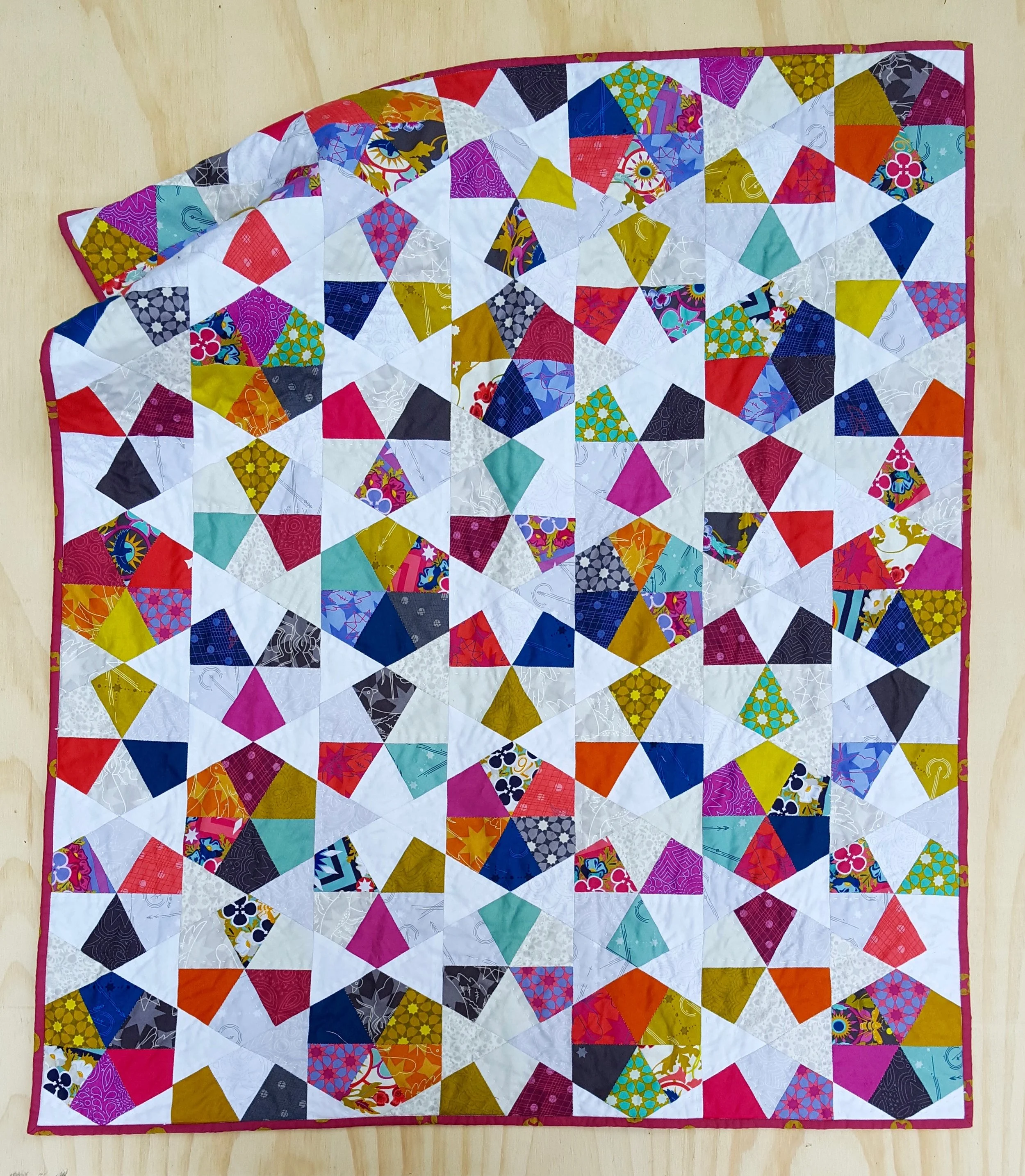

Waterwheel Quilt

Finished Quilt Size: 37" x 43"

What you'll Need:

Paper pieces:

Buy all the pieces here in the Waterwheel Quilt Kit!

(294) 1 1/5” Kites
(106) 3” Equilateral Triangles

Fabric:

(12) 3 1/2” x WOF strips of assorted saturated prints for coloured Kites.
(5) 3 1/2” x WOF strips of white or low volume fabric strips for white Kites
(6) 3 1/4” x WOF strips of white or low volume fabric strips for white Triangles.
1/3 yard for binding
1 1/2 yards for backing

ADDITIONAL SUPPLIES

48" x 58" batting
Rotary cutter/mat/ruler
Embroidery scissors
Hand-sewing needles (Bohin Milliners, size 9)
50 thread (Aurifil)
Fabric glue and/or Clover Wonder Clips*
Sewing machine
Pressing tools
*See tutorial for more information on basting.

METRIC CONVERSION CHART

1 inch        2.54cm
1 foot        30.48cm
1/2 yard    45.72cm
1 yard        91.44cm

CUTTING INSTRUCTIONS:

Coloured Kites: Lay the kite template on the 3 1/2” coloured strip and add 3/8” seam allowance on the right side of the template. Flip the template upside down and nest to the previously cut edge, adding a 3/8” seam allowance then cut again for best use of the fabric. Cut 204 coloured kites.

White Kites: Using the same directions as above, but using the white fabric, cut 90 coloured kites.

Triangles: Lay the triangle template on the 3 1/4"” strip and add 3/8” seam allowance on the right side of the template. Flip the template upside down and nest to the previously cut edge, adding a 3/8” seam allowance then cut again for best use of the fabric. Cut 106 triangles.

STITCHING THE coloured Hexagon blocks:

1. Prepare all the pieces for the quilt by basting the fabric to the paper templates.

2. Place two coloured kites right sides together. Starting at the outside edge, whip-stitch the shapes together along the longest side until you get to the end of the point of the two kites. Stitch a few times to anchor the thread. Open the shapes out. Keep the thread attached and add another Kite to the block, stitching back out to the outside edge. Anchor the thread and snip.

3. Repeat step 2 to make a second half block. Stitch the two half blocks together.

4. Make (18) coloured hexagons.

STITCHING THE mixed Hexagon blocks:

5. Place a coloured kite and a white kite right sides together. Starting at the outside edge, whip-stitch the shapes together along the longest side until you get to the end of the point of the two Kites. Stitch a few times to anchor the thread. Open the shapes out. Keep the thread attached and add another white Kite to the other side of the coloured Kite, stitching back out to the outside edge. Anchor the thread and snip.

6. Stitch the other half of the block with one white kite between two coloured kites.

7. Stitch the two half blocks together.

8. Make (28) mixed hexagons.

Stitching the Half Blocks.

9. Place a coloured Kite and a white Kite right sides together. Starting at the outside edge, whip-stitch the shapes together along the longest side until you get to the end of the point of the two Kites. Stitch a few times to anchor the thread. Open the shapes out. Keep the thread attached and add another coloured Kite to the other side of the white Kite, stitching back out to the outside edge. Anchor the thread and snip.

10. Stitch (6) half blocks.





Stitching the columns:

11. This quilt is made from two different laid out columns, Column A and Column B.

12. To make Column A, sew 2 triangles to 2 adjacent sides of a Coloured hexagon. This will become the 'top'. On the opposite side, the 'bottom', sew 2 more triangles to the 2 adjacent sides.

13. Sew a mixed hexagon, with a coloured kite pointing to the top, to the triangles under the first hexagon. Sew 2 more triangles to the bottom of the column.

14. Sew a mixed hexagon with a coloured kite pointing to the bottom, to the triangles below the second hexagon. Sew 2 more triangles to the bottom of the column.

15. Repeat this pattern as shown in the column diagram until (7) hexagons are sewn into a column. Make (4) Column A













16. To make Column B, take a half block, with the flat edge at the top, and sew two triangles to the 3" sides.

17. Sew a mixed hexagon with a coloured kite pointing to the bottom, to the triangles below the second hexagon. Sew 2 more triangles to the bottom of the column.

18. Sew a coloured hexagon to the triangles at the bottom of the column. Sew 2 more triangles to the bottom of the column.

19. Sew a mixed hexagon, with a coloured kite pointing to the top, to the triangles under the first hexagon. Sew 2 more triangles to the bottom of the column.

20. Repeat this pattern once, so that there are 6 full hexagons sewn into the column, with a half block at the top. Complete the column with a half block at the bottom.

21. Sew (3) Column B.

Stitching the quilt top.

22. Lay the rows out to check for pleasing colour placement according to the diagram below. Number the rows 1-7.

23. Join the rows in numerical order. Place row 2 over row 1, right sides together. Using 3 stitches for anchoring the threads and small whipstitches for joining the fabric folds, sew the edges of the pieces together. Using Clover Clips to hold points together along the row will keep it from shifting.

24. Add the rows one at a time, and remove the papers, if desired, once a row is completely surrounded. Doing so as you go makes the quilt a bit lighter to handle for sewing subsequent rows, but you can wait until the quilt is completed before removing papers if desired.

25. Once the quilt is complete, remove any remaining papers and press the quilt top flat.

FINISHING

26. Layer the backing (wrong side up), batting, and quilt top (right side up). Baste the layers together and quilt as desired. The featured quilt was hand quilted, following the edges of the white areas.

27. Open out the turn-under of the outside edge pieces and trim the excess quilt top, batting, and backing 1/4” beyond the seam line where the papers have been.

28. Sew the binding strips together end to end using diagonal seams. Press the binding in half wrong sides together.

29. Leaving an 8" tail of binding, sew the binding to the quilt through all layers, matching all raw edges. Miter corners. Stop approximately 12" from where you started. Lay both loose ends of binding flat along quilt edge. Where these two loose ends meet, fold them back on themselves and press to form a crease. Using this crease as your stitching line, sew the two open ends of the binding together right sides together. Trim seam to 1/4" and press open. Finish sewing binding to quilt.

30. Turn the binding to the back of quilt and hand-stitch in place
